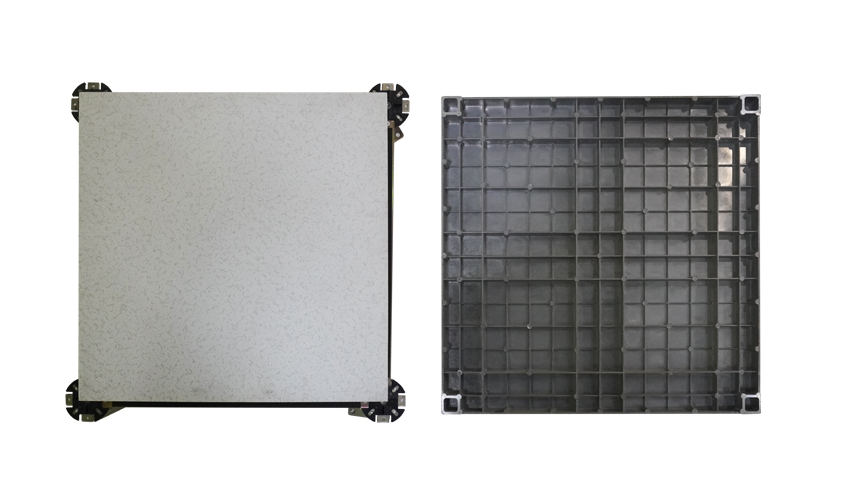

Aluminum FloorAluminum Solid Panel
Panel structure
Top layer:
Bare /HPL/PVC tile
Panel Material: aluminum alloy
Size:600*600*50/55mm
Description
Inosflor aluminum solid panels are made of high strength pure aluminum, with 2000 ton die cast machine, INOSFLOR aluminum floor with high loading capacity and mainly used in clean room, semi-conductor production workshop, hospital and so other area where require super cleaning environment. With super high loading capacity, some heavy equipment can also put onto the aluminum floor system directly.
| Panel Type | Static Load | Rolling Load | Impact Load | |||
|---|---|---|---|---|---|---|
| Concentrated Load | Ultimate Load | Uniform Load | 10 Passes | 10,000 Passes | ||
| SCC 1000 | 1000 LB/4.45 KN | 3000 LB/13.34KN | 17KN/SQM | 800 LB | 600 LB | 150 LB |
| SCC 1500 | 1500 LB/6.67 KN | 4500 LB/20.02 KN | 22KN/SQM | 1250 LB | 1000 LB | 150 LB |
| SCC 2000 | 2000 LB/8.90 KN | 6000 LB/26.70 KN | 26KN/SQM | 1500 LB | 1250 LB | 200 LB |

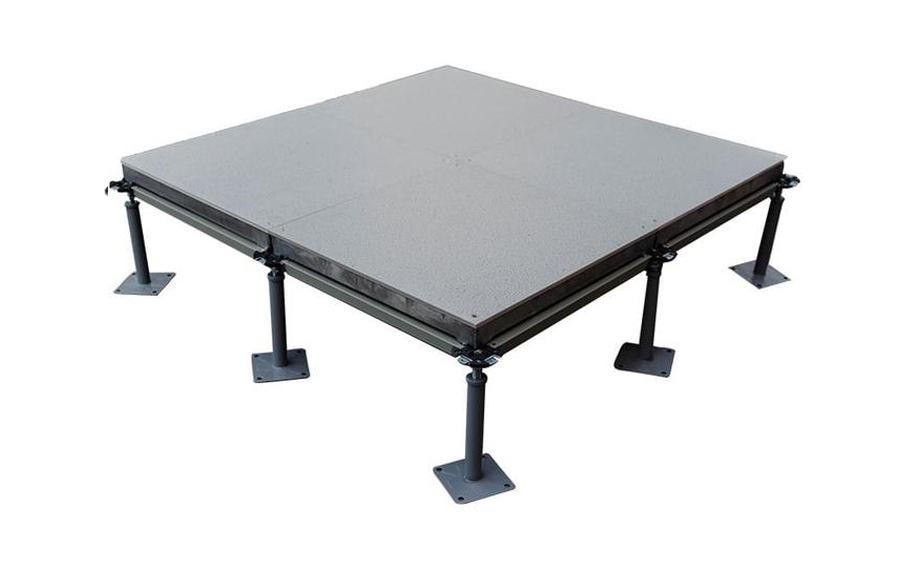

Under structure system
Pedestal Head:
Head plate:diameter 95mm*4.0mm
Threaded rod: M19 threaded rod with 2 nuts
Pedestal Base
Base plate: 125*125*3.0mm
Base Tube: diameter 22mm with thickness of 1.5mm
Color: white/colorful
Other size and thickness and can be customized.
Stringer
Steel tube performed stringer with plastic gasket on top, providing best support to the structure system
