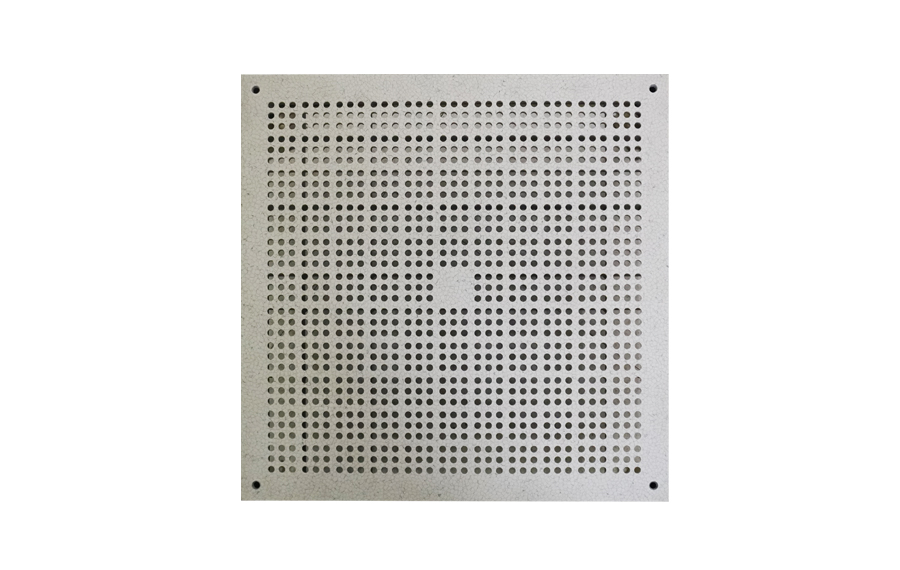

Aluminum FloorAluminum Perforated Panel
Panel structure
Top layer:
Bare/HPL/PVC tile
Panel Material: aluminum alloy
Size:600*600*50/55mm
Description

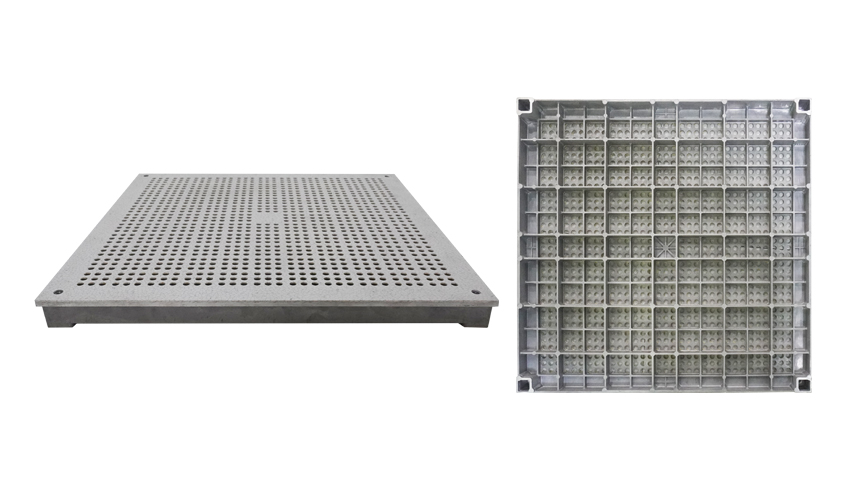

INOSFLOR aluminum perforated panels are made of high strength pure aluminum, with 2000 ton die cast machine, the grating floor is used with aluminum solid floor system where need ventilation. Normally for clean room or semi-conductor production workshop, stable temperature and humidity is strictly required,the air conditional system under raised floor can fully meet such requirement, and that is the import point to use the grating floor for air ventilation.
| Panel Type | Static Load | Rolling Load | Impact Load | |||
|---|---|---|---|---|---|---|
| Concentrated Load | Ultimate Load | Uniform Load | 10 Passes | 10,000 Passes | ||
| SCC 1000 | 1000 LB/4.45 KN | 3000 LB/13.34 KN | 17KN/SQM | 800 LB | 600 LB | 150 LB |
| SCC 1250 | 1250 LB/5.56 KN | 3750 LB/16.68 KN | 19KN/SQM | 1000 LB | 800 LB | 150 LB |
| SCC 1500 | 1500 LB/6.67 KN | 4500 LB/20.02 KN | 22KN/SQM | 1250 LB | 1000 LB | 150 LB |

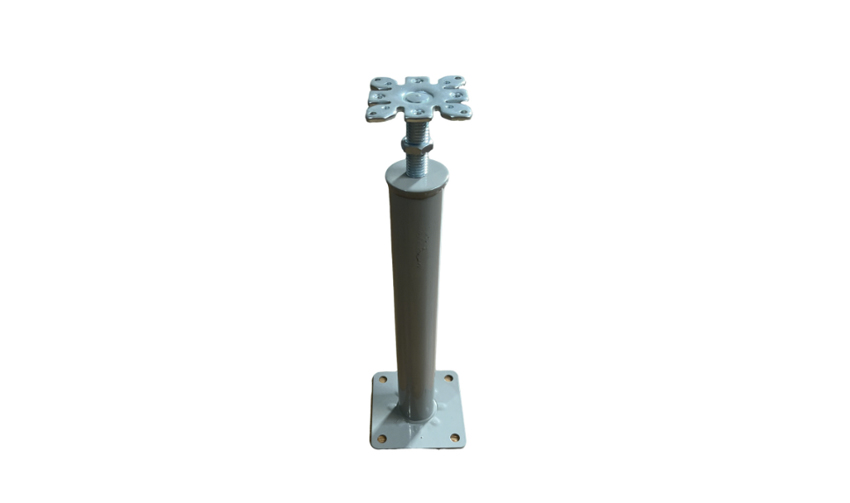

Under structure system
Pedestal Head:
Head plate:diameter 95mm*4.0mm
Threaded rod: M19 threaded rod with 2 nuts
Pedestal Base:
Base plate: 125*125*3.0mm
Base Tube: diameter 22mm with thickness of 1.5mm
Color: white/colorful
Other size and thickness and can be customized.
Stringer
Steel tube performed stringer with plastic gasket on top, providing best support to the structure system.
