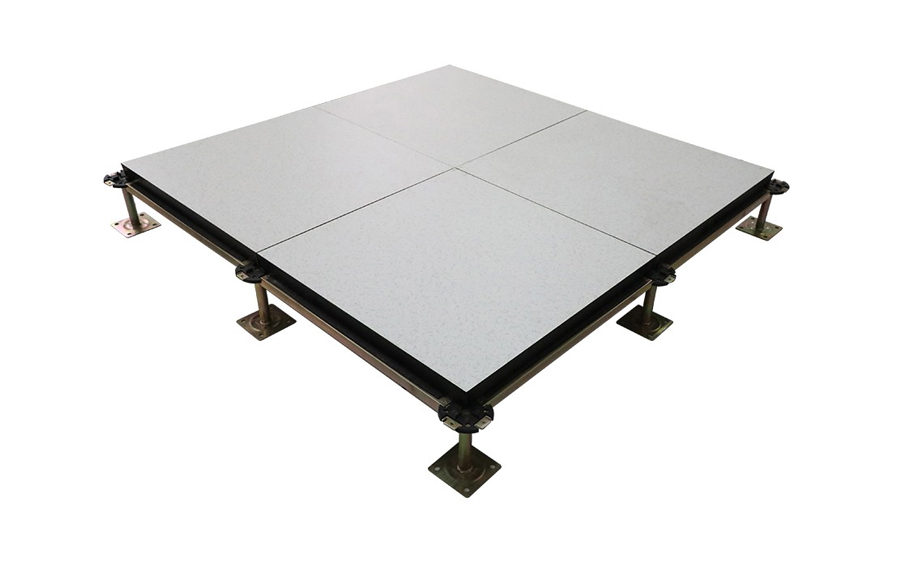

Calcium Sulphate Floor600*600 Covered with HPL

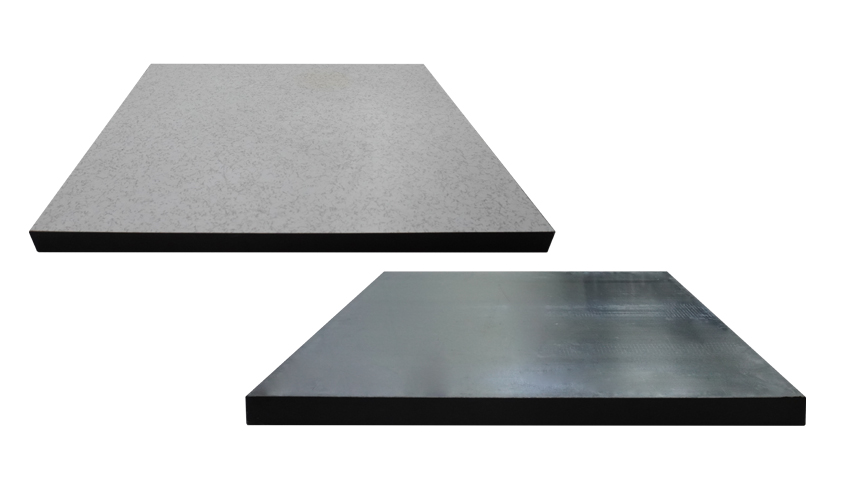

Panel structure
Calcium Sulphate Core
Material: Calcium sulphate powder density:1650kg/M3
Top Layer
Material: anti-static HPL
Bottom Layer
Material : galvanized steel sheet
Thickness: 0.3-0.5mm
Edge band:
Conductive PVC
Description
INOSFLOR Calcium sulphate floor is made of high density calcium sulphate core (approx 1650kg/m3) non toxic,non combustible material, the top is glued with HPL/PVC tile and bottom are laminated with galvanized steel sheet, four sides with PVC edge trim which will protect the calcium sulphate core material from collision and humidity.
INOSFLOR calcium sulphate floor system passed the CISCA and PSA MOB PF2 PS/SPA.
| Panel Type | Static Load | Rolling Load | Impact Load | |||
|---|---|---|---|---|---|---|
| Concentrated Load | Ultimate Load | Uniform Load | 10 Passes | 10,000 Passes | ||
| SCC800 | 800 LB/356 KN | 2400 LB/10.68KN | 14KN/SQM | 600LB | 400 LB | 150 LB |
| SCC1000 | 1000 LB/4.45 KN | 3000 LB/13.34KN | 17KN/SQM | 800LB | 600 LB | 150 LB |
| SCC1250 | 1250 LB/5.56 KN | 3750 LB/16.68KN | 19KN/SQM | 1000LB | 800 LB | 150 LB |

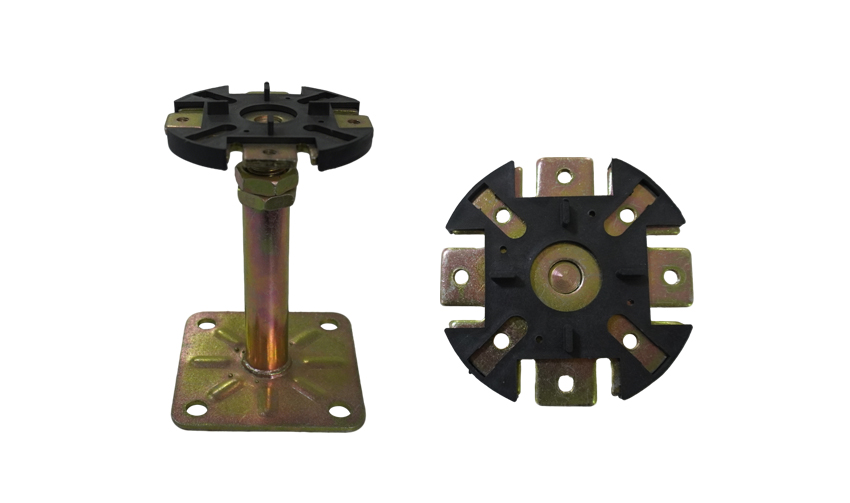

Pedestal head:
Head plate: diameter 90mm*3mm /4mm
M19 threaded rod with 1nut or 2 nuts
Pedestal base:
Base plate: 95*95*3mm
Base tube: round tube diameter 25mm with thickness of 1.5mm
Color: white/ colorful
INOSFLOR calcium sulphate floor pedestal system passed the PSA MOB PF2 PS/SPU-1992 by INTERTEK
Stringer
Steel tube performed stringer with plastic gasket on top provide best support to the structure system with limited air leakage and outstanding acoustic performance.
Thickness: 0.8/1.2/1.5mm
