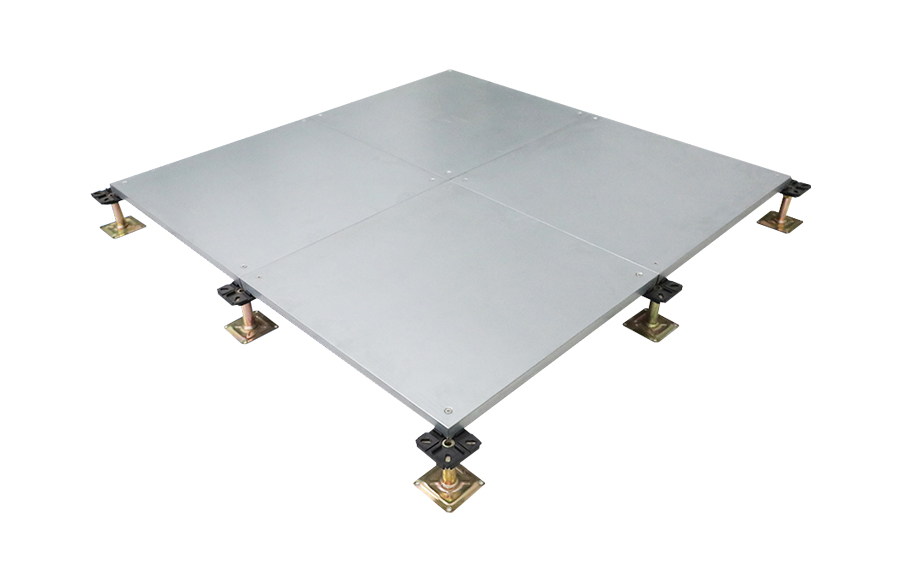

Calcium Sulphate FloorCalcium Sulphate Fully Encapsulated

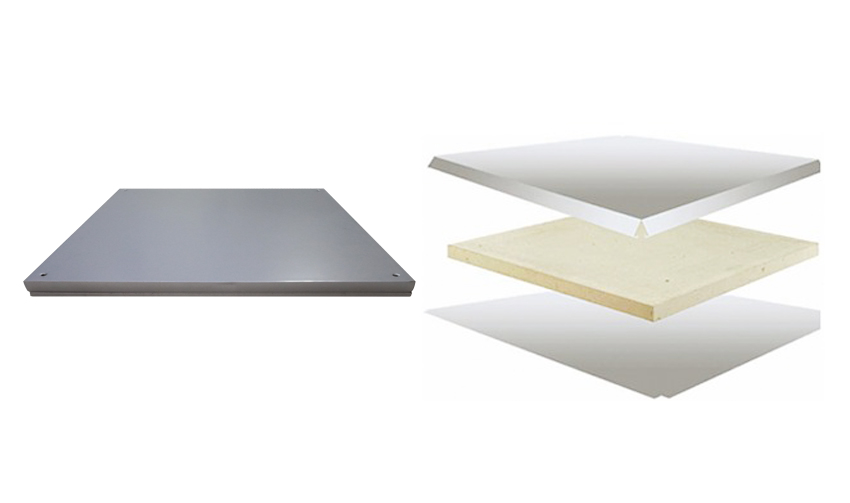

Panel structure
Calcium Sulphate Core
Material: Calcium sulphate
Density:1650kg/M3
Top Layer
Material: galvanized steel sheet
Thickness 0.3-0.5mm
Bottom Layer
Material : galvanized steel sheet
Thickness: 0.3-0.5mm
Description
INNOS Calcium sulphate floor is made of high density calcium sulphate core (approx 1650kg/m3) non toxic,non combustible material, the calcium sulphate core is fully encapsulated with galvanized steel sheet,which will provide excellent loading capacity and easy on installation process on the construction site.
| Panel Type | Static Load | Rolling Load | Impact Load | |||
|---|---|---|---|---|---|---|
| Concentrated Load | Ultimate Load | Uniform Load | 10 Passes | 10,000 Passes | ||
| SCC800 | 800 LB/356 KN | 2400 LB/10.68KN | 14KN/SQM | 600LB | 400 LB | 150 LB |
| SCC1000 | 1000 LB/4.45 KN | 3000 LB/13.34KN | 17KN/SQM | 800LB | 600 LB | 150 LB |
| SCC1250 | 1250 LB/5.56 KN | 3750 LB/16.68KN | 19KN/SQM | 1000LB | 800 LB | 150 LB |

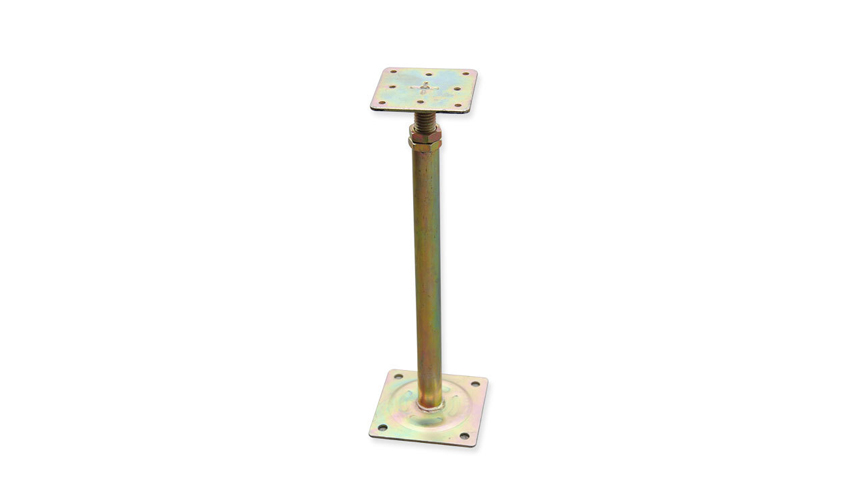

Pedestal head:
Head plate: 76*76mm*3mm /4mm
M19 threaded rod with 1nut or 2 nuts
Pedestal base:
Base plate: 95*95*3mm
Base tube: round tube diameter 25mm with thickness of 1.5mm
Color: white/ colorful
Stringer
Steel tube performed stringer with plastic gasket on top provide best support to the structure system with limited air leakage and outstanding acoustic performance.
Thickness: 0.8/1.2/1.5mm
