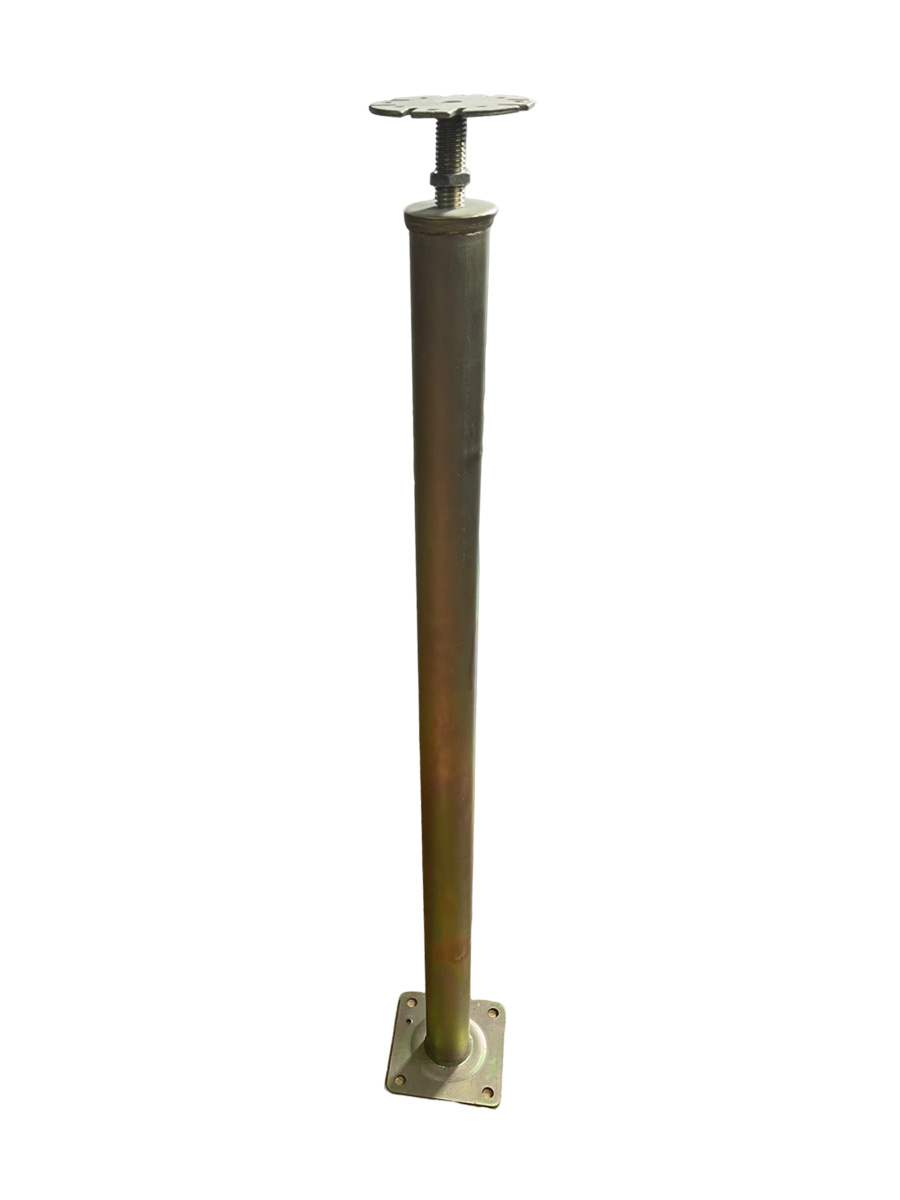

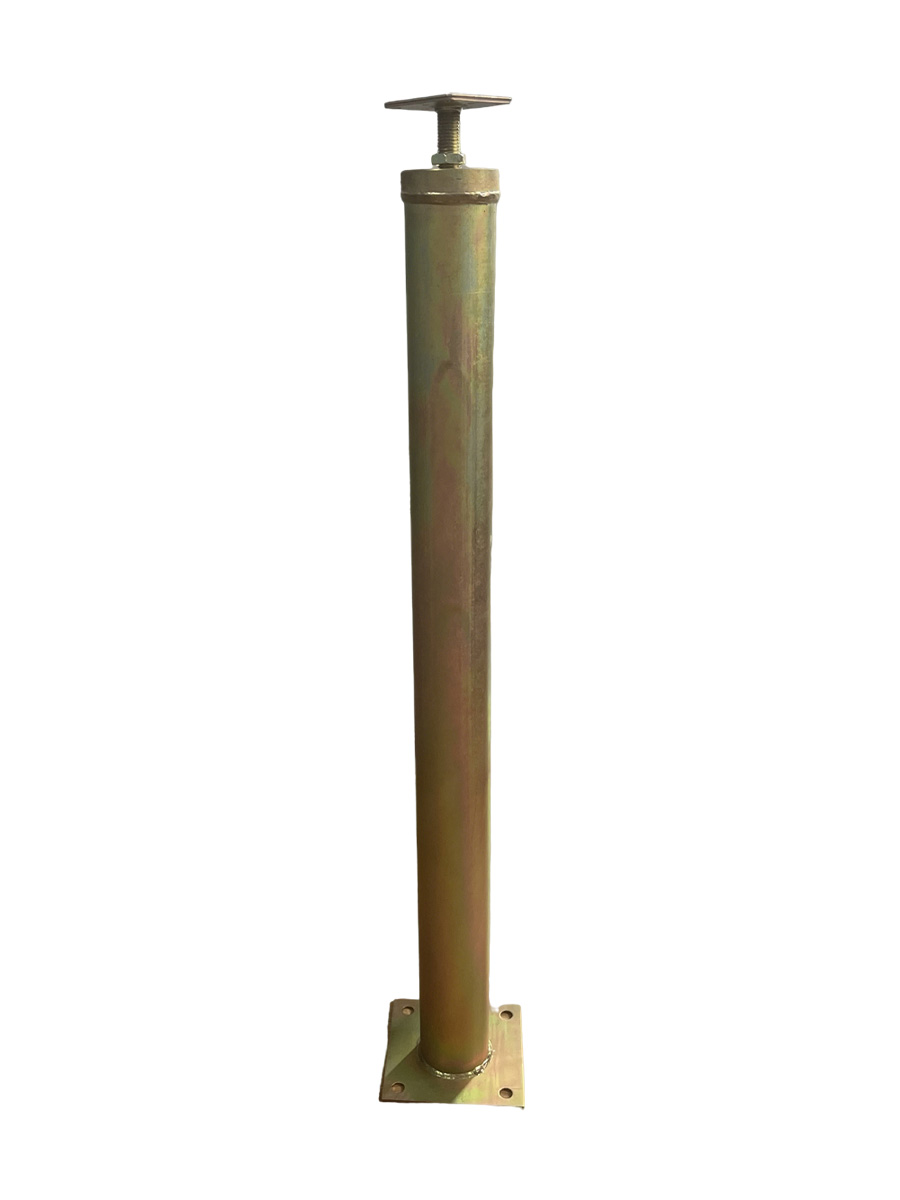

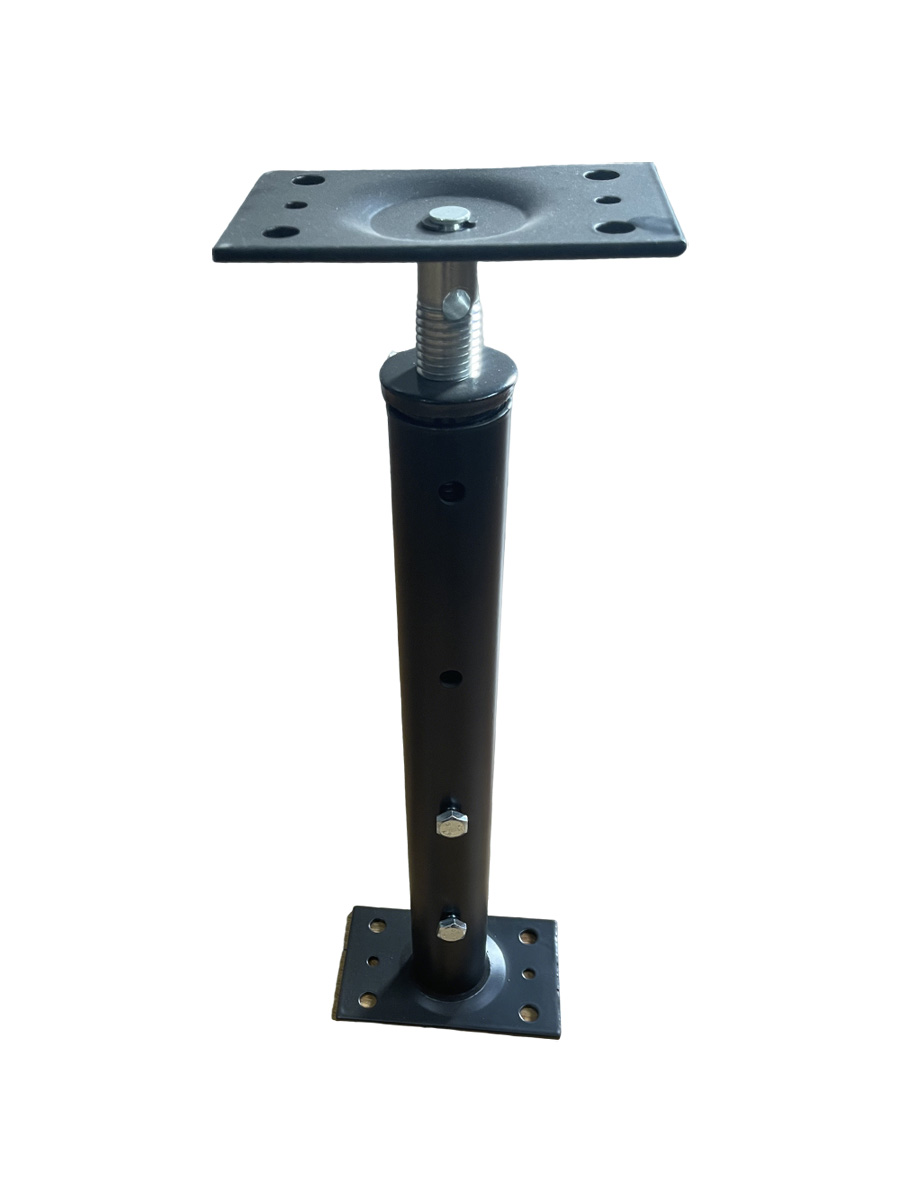

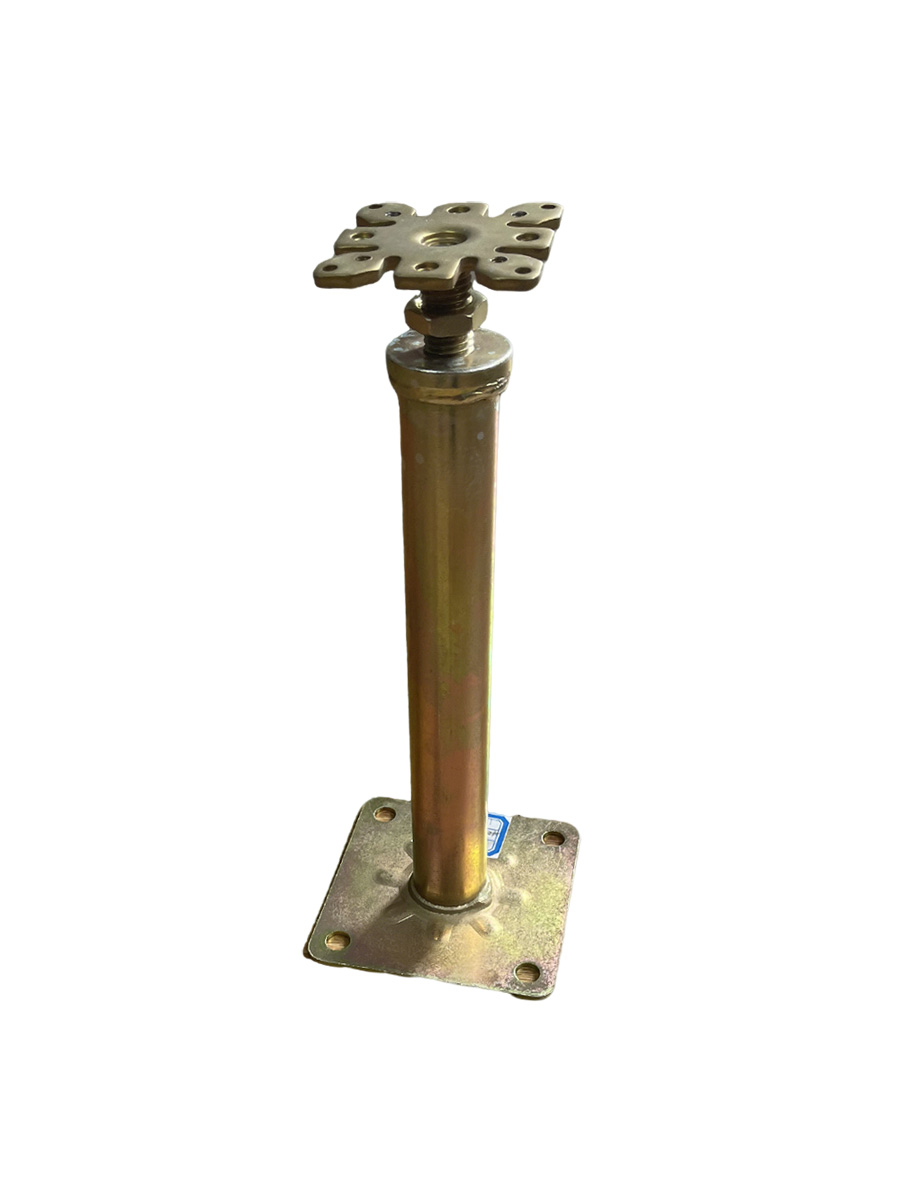

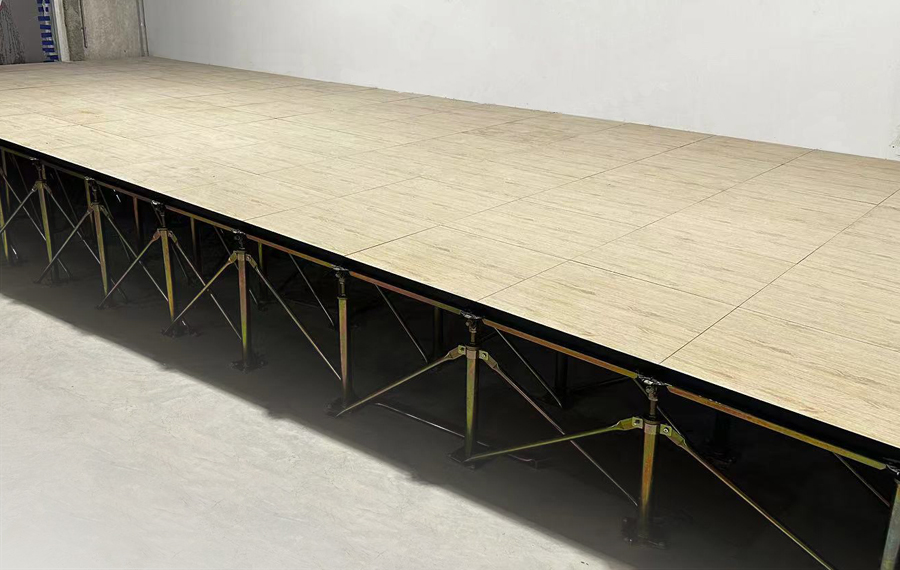

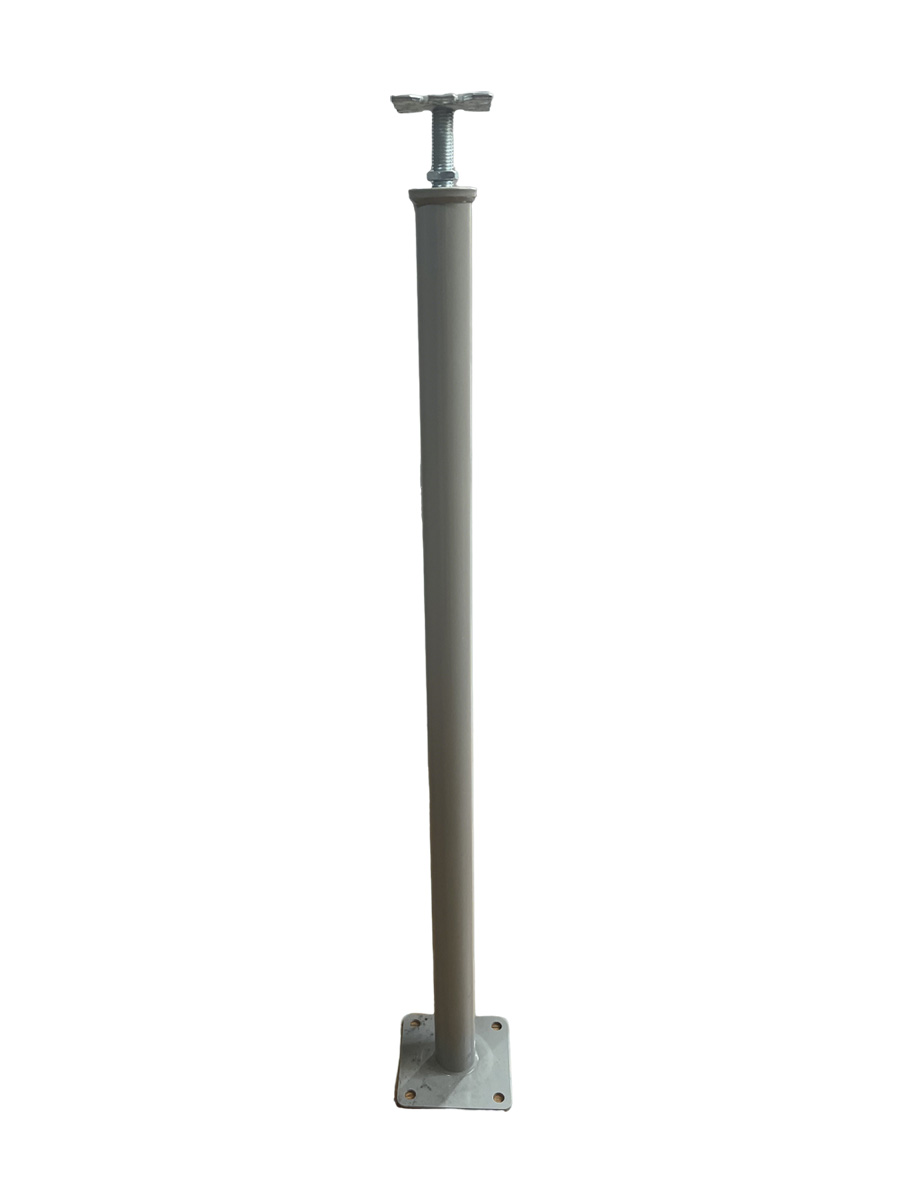

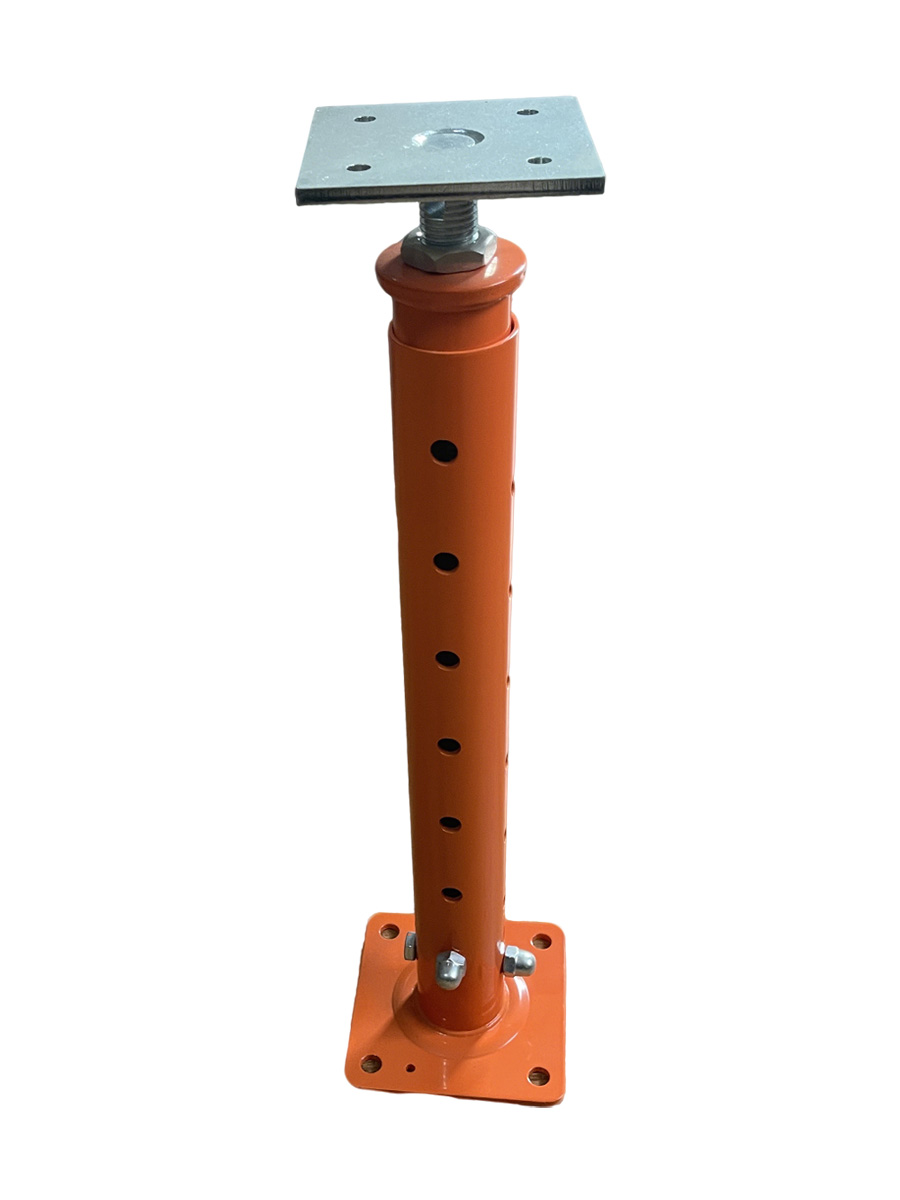

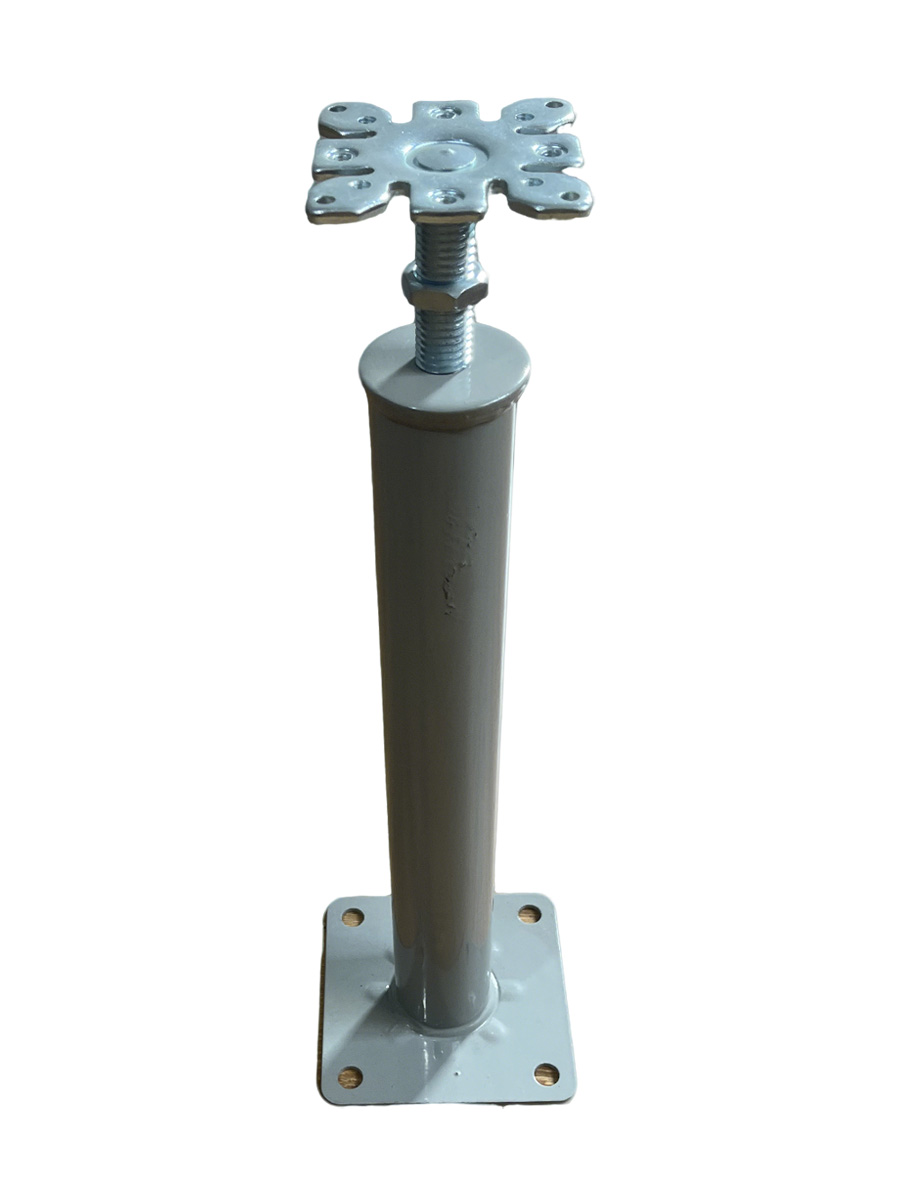

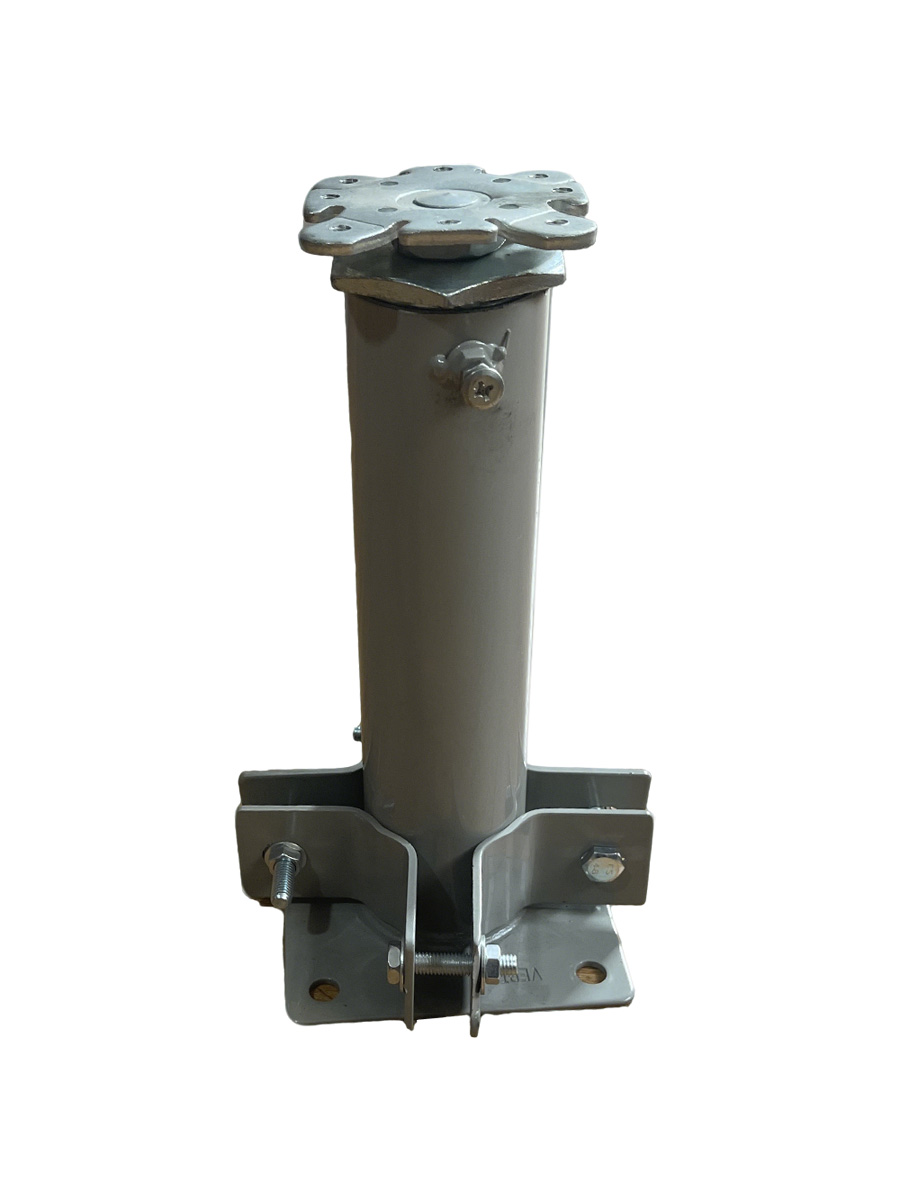

Heavy Duty PedestalHeavy Duty Pedestal System
Heavy Duty Pedestal system is designed for areas which strictly required heavy loading capacity raised flooring, normally the concentrated loading of the floor will be more than 1500lb or even more.
Description
Heavy Duty Pedestal system is designed for areas which strictly required heavy loading capacity raised flooring, normally the concentrated loading of the floor will be more than 1500lb or even more.
With the purpose to meet such requirement, INOSFLOR pedestal system can be customized different type of heavy duty under structure to support the flooring system.
As for some type of the heavy duty pedestals, can also be used to support the part of building during the construction, typical example is in Japan, most of the Japanese construction companies prefer to use the heavy duty pedestals in their buildings.
The surface finish of the pedestals can be Zinc galvanized.
Heavy Duty Pedestal Specification
Pedestal Head
Head plate thickness: 4mm/5mm
M19 threaded rod, length will be customized to meet different adjusting height
Pedestal Base
Base plate thickness:4mm
Size:125*125mm
Base tube: diameter 32/38/45mm, or other customized size
Tube thickness: 1.5mm/ 2.0mm
