Perforated FloorPerforated Panel
Description
INOSFLOR aluminum perforated panels are made of high strength pure aluminum, with 2000 ton die cast machine, the grating floor is used with aluminum solid floor system where need ventilation. Normally for clean room or semi-conductor production workshop, stable temperature and humidity is strictly required,the air conditional system under raised floor can fully meet such requirement, and that is the import point to use the grating floor for air ventilation.
| Panel Type | Static Load | Rolling Load | Impact Load | |||
|---|---|---|---|---|---|---|
| Concentrated Load | Ultimate Load | Uniform Load | 10 Passes | 10,000 Passes | ||
FS800 | 800 LB/356 KN | 2400 LB/10.68 KN | 14KN/SQM | 600 LB | 400 LB | 150 LB |
FS1000 | 1000 LB/4.45KN | 3000 LB/13.34KN | 17KN/SQM | 800 LB | 600 LB | 150 LB |

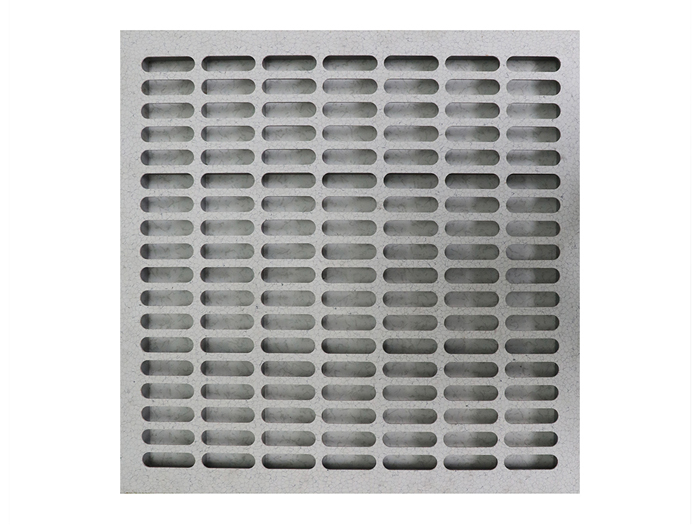

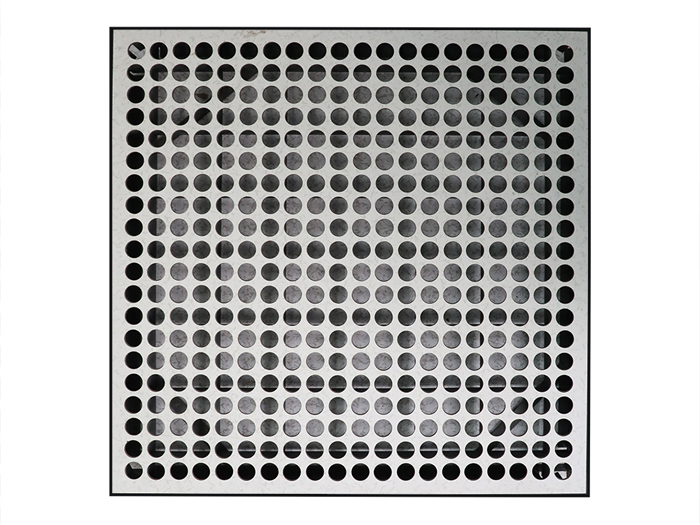

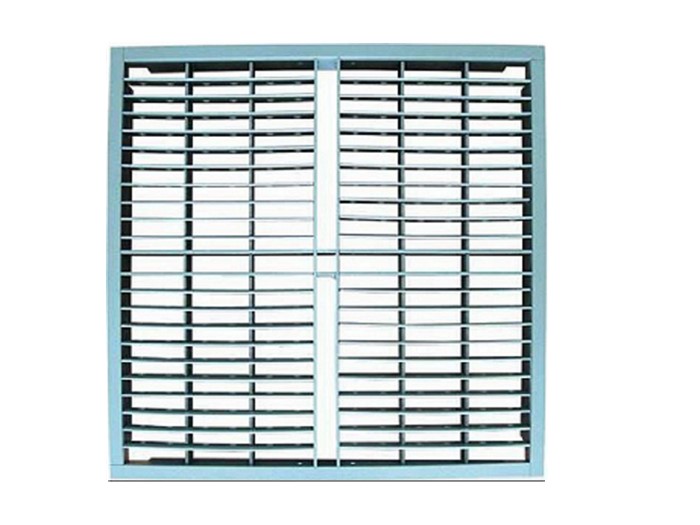

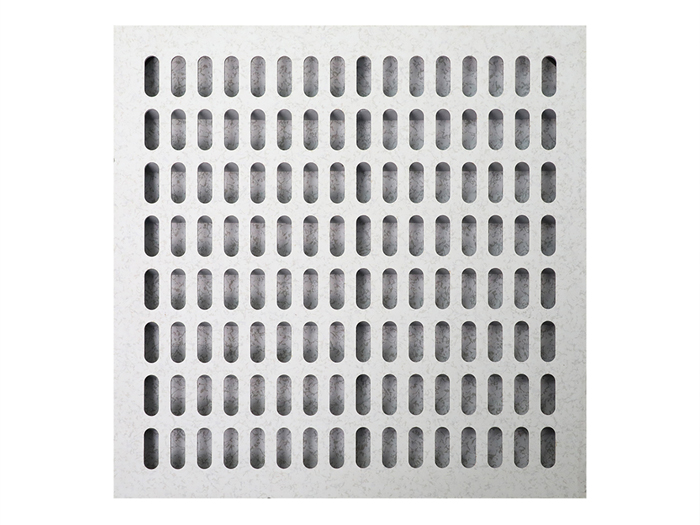

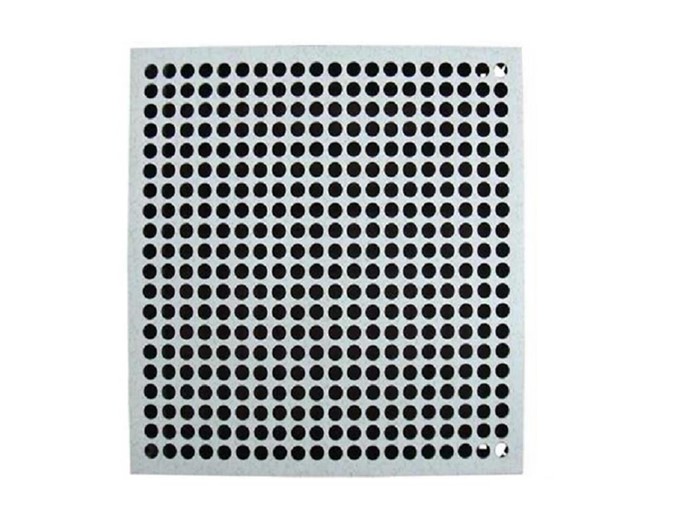

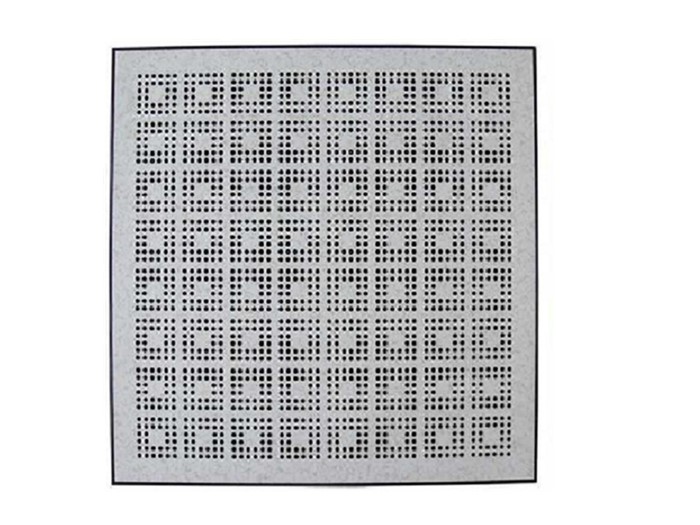

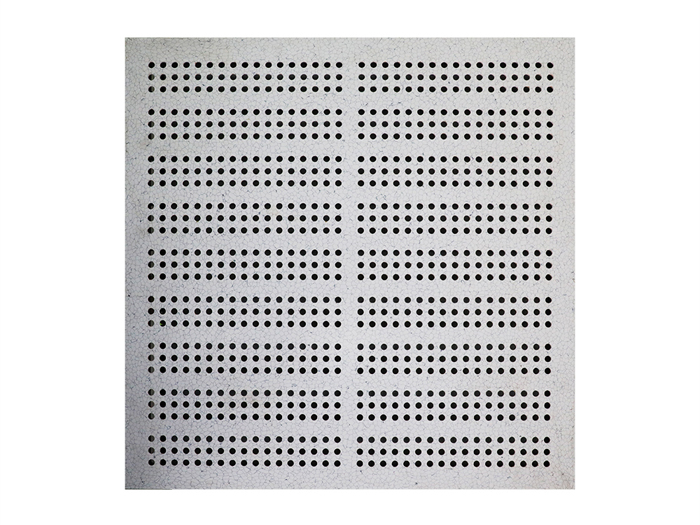

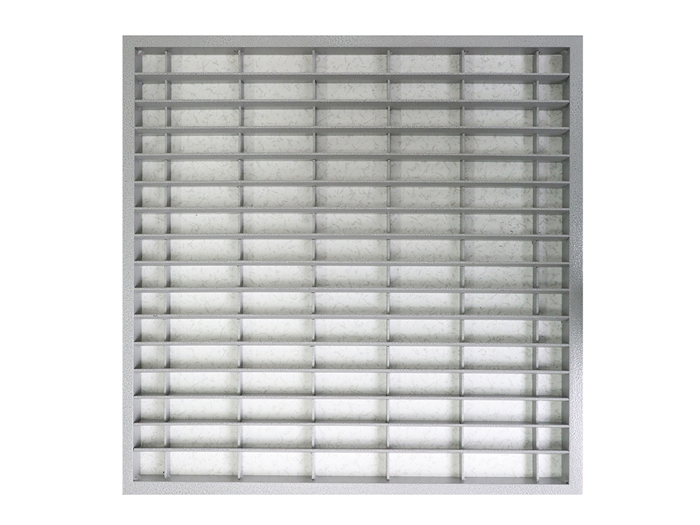

20%

30%

35%

40%

45%

48%

65%

78%
