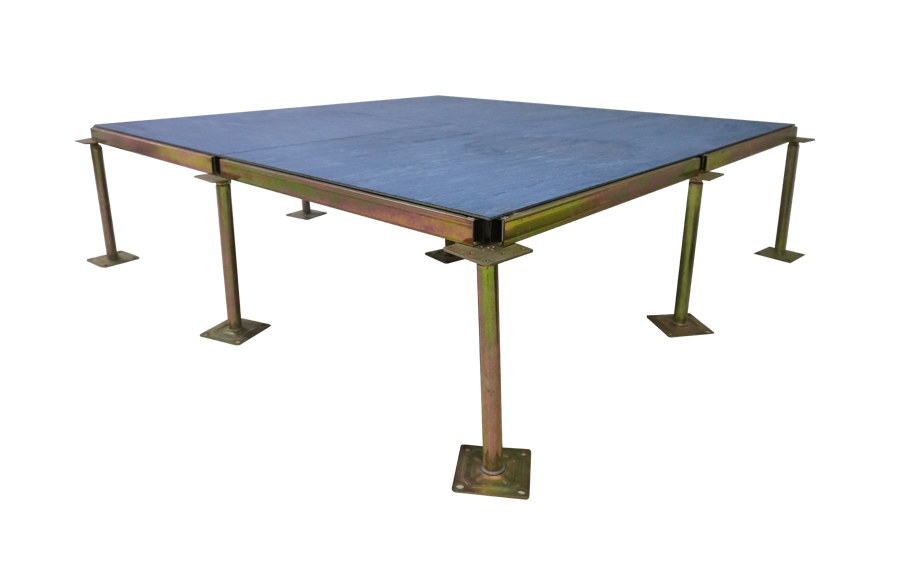

Steel Concrete Core Floor600*600 Covered System
Panel structure
Top sheet:
Material: Cold Rolled Steel (SPCC)
Thickness: 0.5--2.0mm
Bottom Sheet:
Material: Cold Rolled Steel (ST14)
Thickness : 0.5--1.5mm
Core Material: light weight cement
Surface finish: EPOXY coating
Description
Innos covered finish system panels are manufactured of cold rolled steel, top and bottom sheet welded , with light weight cement infilled. Different thickness of the steel sheet combination designed for different loading capacity of the whole flooring system. The top finish of the panel is covered with HPL /PVC tile for anti-static or conductive function, this kind of floors are widely used in computer room, data center , control center and so on where computer devices are used . The edge of the panel is covered with conductive edge trim, which can conduct the static to the pedestals and to the ground. For some special designed area, the copper strip will be also used to connect each pedestals.
| Panel Type | Static Load | Rolling Load | Impact Load | |||
|---|---|---|---|---|---|---|
| Concentrated Load | Ultimate Load | Uniform Load | 10 Passes | 10,000 Passes | ||
| SCC700 | 700 LB/3.11 KN | 2100 LB/9.34KN | 13KN/SQM | 500 LB | 300 LB | 150 LB |
| SCC800 | 800 LB/356 KN | 2400 LB/10.68 KN | 14KN/SQM | 600 LB | 400 LB | 150 LB |
| SCC1000 | 1000 LB/4.45 KN | 3000 LB/13.34KN | 17KN/SQM | 800 LB | 600 LB | 150 LB |
| SCC1250 | 1250 LB/5.56 KN | 3750 LB/16.68KN | 19KN/SQM | 1000 LB | 800 LB | 150 LB |
| SCC1500 | 1500 LB/6.67 KN | 4500 LB/20.02 KN | 22KN/SQM | 1250 LB | 1000 LB | 150 LB |
| SCC2000 | 2000 LB/8.90 KN | 6000 LB/26.70 KN | 26KN/SQM | 1500 LB | 1250 LB | 200 LB |
Under structure system

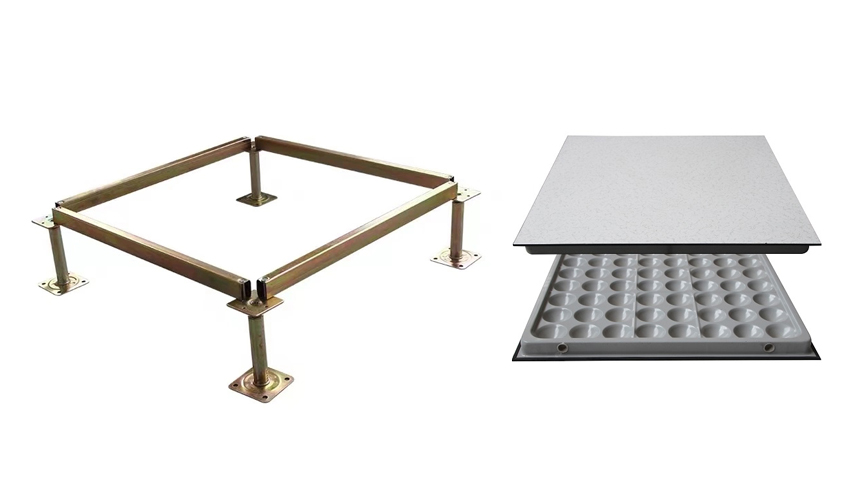

The pedestals are connected by stringers, with screws to fix the stringers to the head of the pedestals, all the panels will be put onto the grid directly.

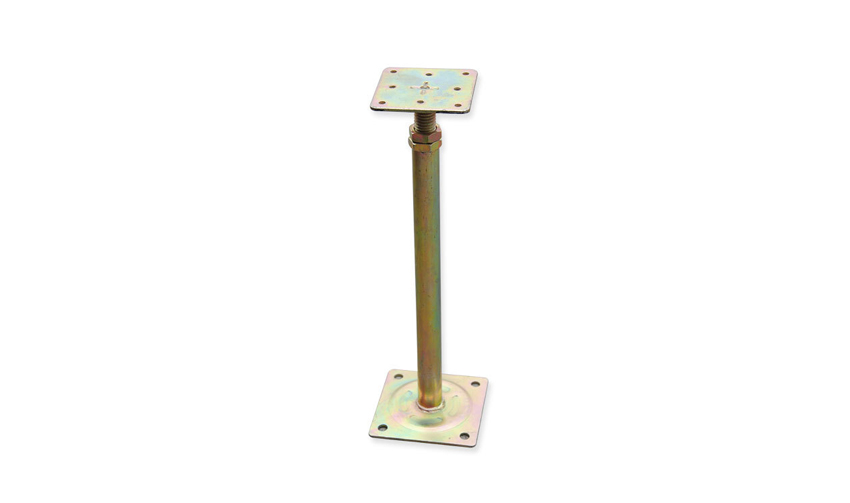

Pedestal head:
Head plate: 76*76*3mm/4mm
M18 threaded rod, with 1 or 2 nuts
Pedestal base:
Base plate: 95*95*3mm
Base tube: diameter 22mm with thickness of 1.5mm
Different diameter and thickness of tube is optional
Stringer
Thickness from 0.8--2mm
